CHCNAV i83
CHCNAV i83
overview

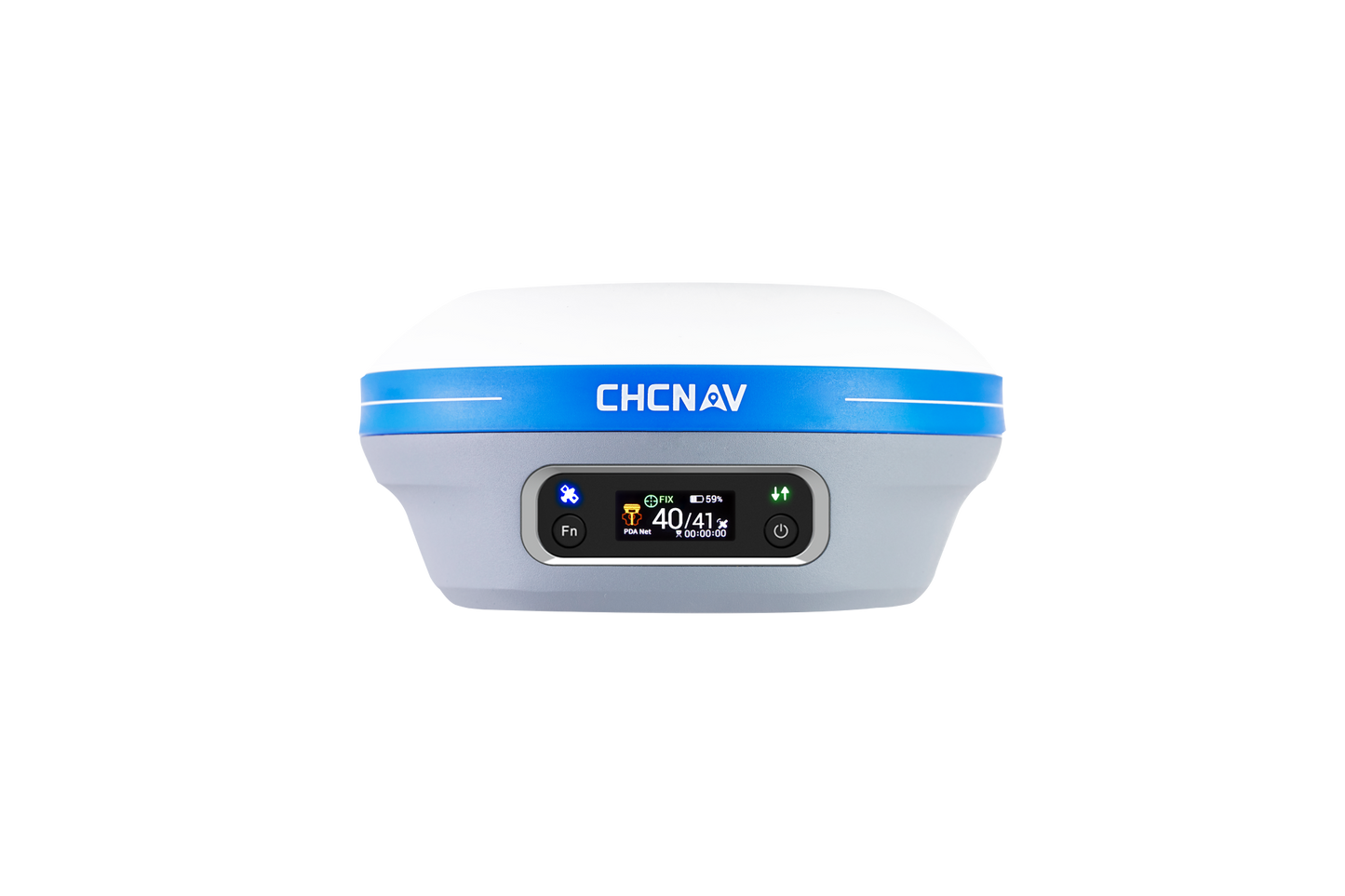

Much more than just a universal 1408-channel multi-band IMU RTK GNSS receiver, the i83 GNSS receiver is the perfect GNSS RTK surveying tool that every surveying, construction or mapping professional expects. Thanks to integrated connection modules such as WiFi, Bluetooth, NFC, UHF and 4G modem, it can be used in various application scenarios reliably, efficiently and conveniently to master any task.
The i83 GNSS features the third generation of CHCNAV GNSS antenna and the latest iStar algorithm, increasing the signal tracking efficiency of all GNSS signals by 30%. Additionally, a high-quality, calibration-free IMU sensor is integrated, which greatly improves the usability and reliability of RTK GNSS surveys.
Designed for extended field use and robust performance, the i83 GNSS's intelligent power management enables up to 34 hours of continuous RTK rover operation. The i83 GNSS delivers unmatched productivity for GNSS surveys, stakeouts, and other typical construction tasks.
Beyond GNSS-RTK Surveying
Based on 1408-channel GNSS and iStar technology
The intelligent i83 GNSS antenna delivers centimeter-accurate results in seconds, ensuring reliable, stable RTK accuracy even in challenging environments. The quick start feature means you're up and running within 30 seconds of powering up, making data collection faster than ever when moving between locations.
The third generation of the high-gain antenna increases the efficiency of GNSS satellite signal tracking by up to 30% and enables precise surveying in the survey area using the GPS, Glonass, BeiDou, Galileo and QZSS constellations. The integrated iStar technology ensures optimal GNSS RTK surveys in all GNSS application areas.
DESIGNED FOR FIELD USE
34 hours on a single charge so you're ready to go when you need it
The i83 GNSS electronics' ultra-low power SoC (system-on-chip) design and intelligent power management significantly improve the duration of GNSS surveys and eliminate the need for spare or external batteries. Up to 34 hours of autonomous operation is possible in GNSS RTK network rover mode and up to 16 hours as an RTK base station. The i83 GNSS can be charged via a power bank or a standard USB-C charger.
No matter where or when GNSS surveys are conducted, the i83 GNSS's magnesium alloy housing is shock, dust and water resistant to ensure uninterrupted performance even in the most demanding jobsite conditions.
SMARTER THAN EVER BEFORE CONNECTING
Unmatched universal GNSS receiver
The i83 GNSS has all the connectivity features a surveyor needs to complete any GNSS survey project. Built-in Wi-Fi, Bluetooth and NFC enable seamless connection to field data controllers and tablets. Built-in 4G and UHF modems enable all GNSS survey modes, from RTK network NTRIP connections to UHF base rover configuration. GNSS RTK corrections are continuously retrieved or sent to ensure accurate positioning in all circumstances. The high-resolution color display provides a clear overview of the status of the i83 GNSS. Whether it is being set up as a UHF RTK base station, recording raw data for GNSS post-processing or simply used as a UHF or 4G network rover, it allows complete control of survey operations.
GNSS SURVEYING TOOL FOR EVERYONE
Efficient IMU-RTK surveying made easy
The i83 GNSS's integrated IMU for automatic pole tilt compensation increases the speed and efficiency of surveying, engineering and mapping work by up to 30%. The interference-free 200 Hz inertial module initializes in real time in just 5 seconds and ensures an accuracy of 3 centimeters at a pole tilt angle of up to 30 degrees.
Measuring and staking with the i83 GNSS is fast, easy and highly productive, whether you are an engineer, site manager or surveyor.
